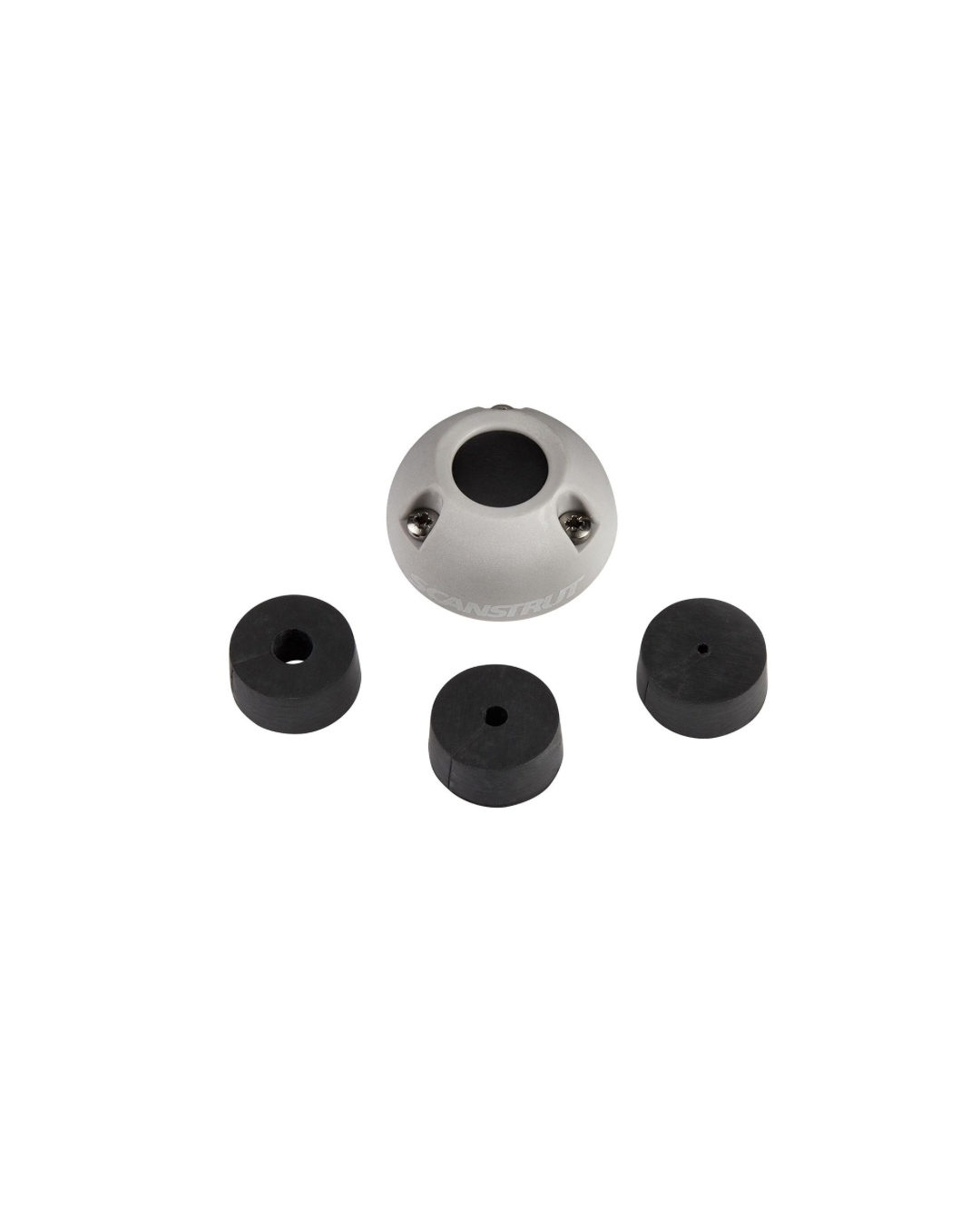

Scanstrut Vertical Cable Seal DS16-P

For cables from 2-8mm (0.08"-0.35"), connectors up to Ø16mm (0.63") an aesthetic dome-shaped profile provides a stronger, impact-resistant design and captive nuts in the base make for an easy assembly.

Watertight Installation
Tapered bung forms a watertight seal. All units are supplied with a closed-cell base seal - 100% waterproof. All models have been IP68 tested and approved.

Easy and Reliable Installation

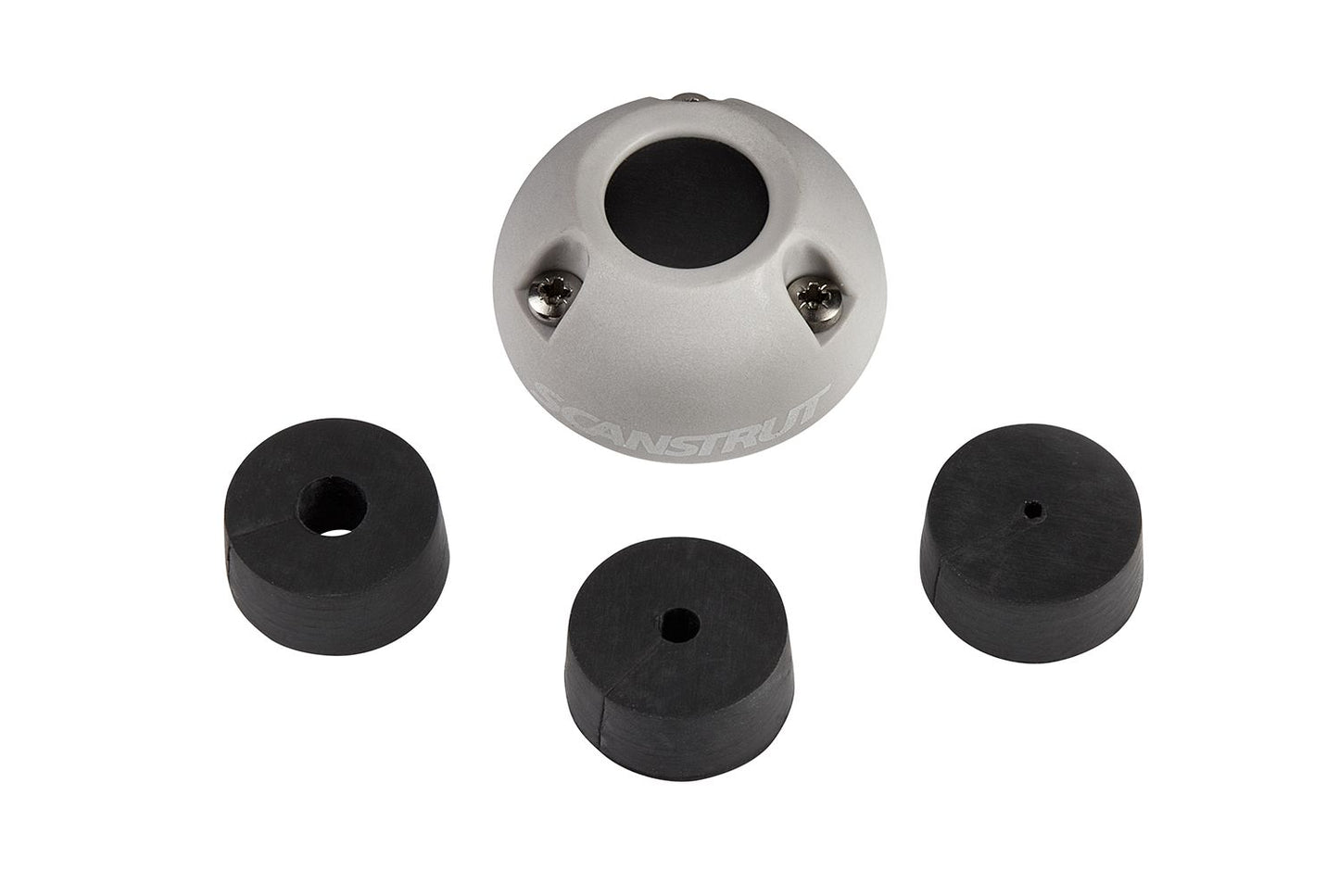

Captive nuts make for easy assembly and also allow reliable repeat installations. Each unit supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.

No Need to Remove Cable Connectors
Split-seal option does not require connector removal during install.

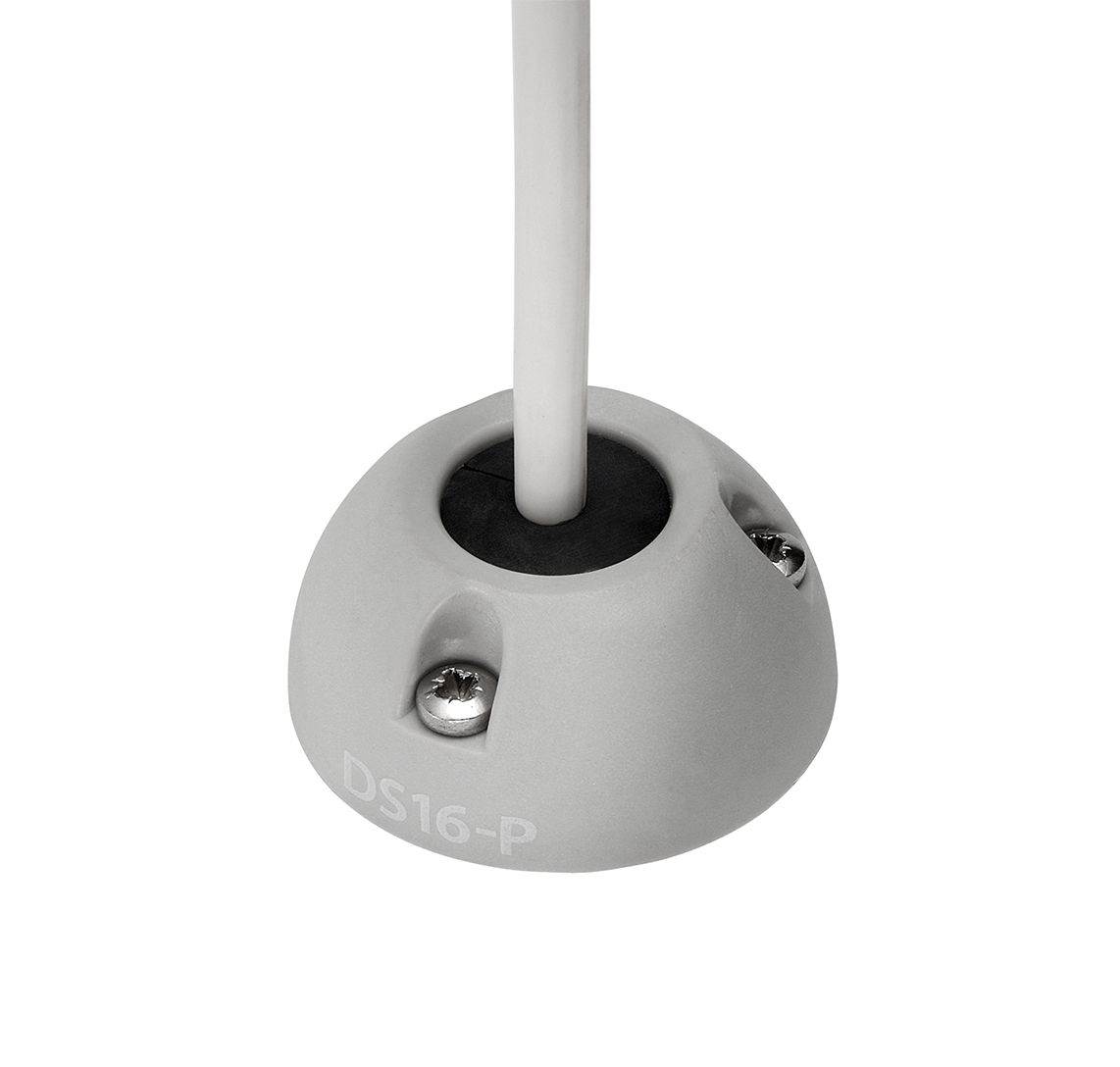

Multi-Functional Dome Shape
The aesthetic dome-shaped profile provides a stronger, impact-resistant design and outer dome provides additional water shield.
