Waveline

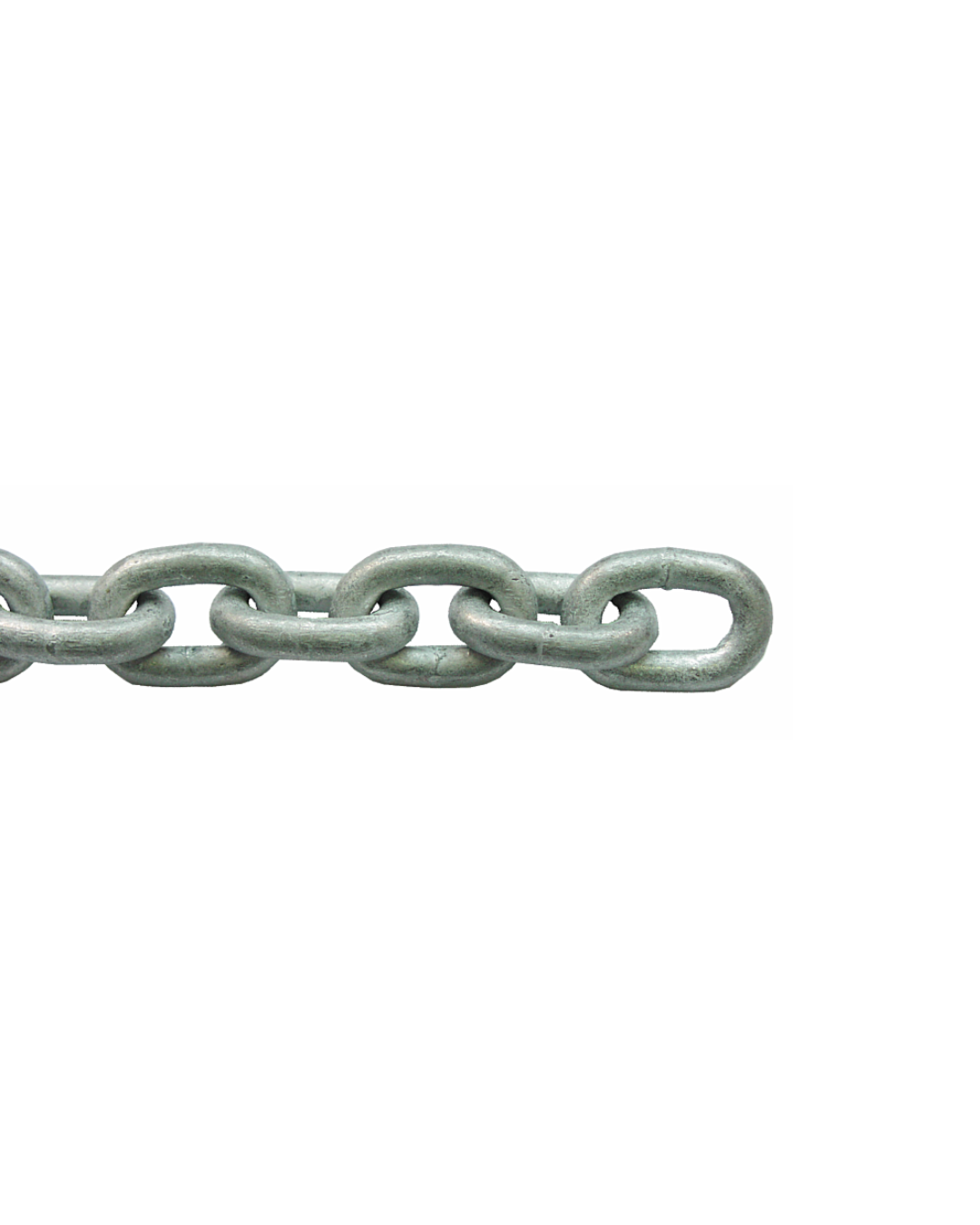

Waveline Calibrated Hot Dip Galvanised Chain
Waveline Calibrated Hot Dip Galvanised Chain
Regular price
£6.50 GBP
Regular price
Sale price
£6.50 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Sold per metre.
The majority of windlasses require chains in accordance with either DIN 766 or ISO 4565. DIN 766. this standard is for calibrated and tested chains using Grade 30 material (per Waveline specifications). ISO 4565, EN 24565 or BS 7160 are all the same standard which covers anchor chains for small crafts. Producing to these standards ensures the chain is a standard fit and suitable for most windlass on the market today including Lofrans®, Lewmar®, Quick® etc.
Calibrated chain, suitable for use with a windlass. Chain Grade: 30

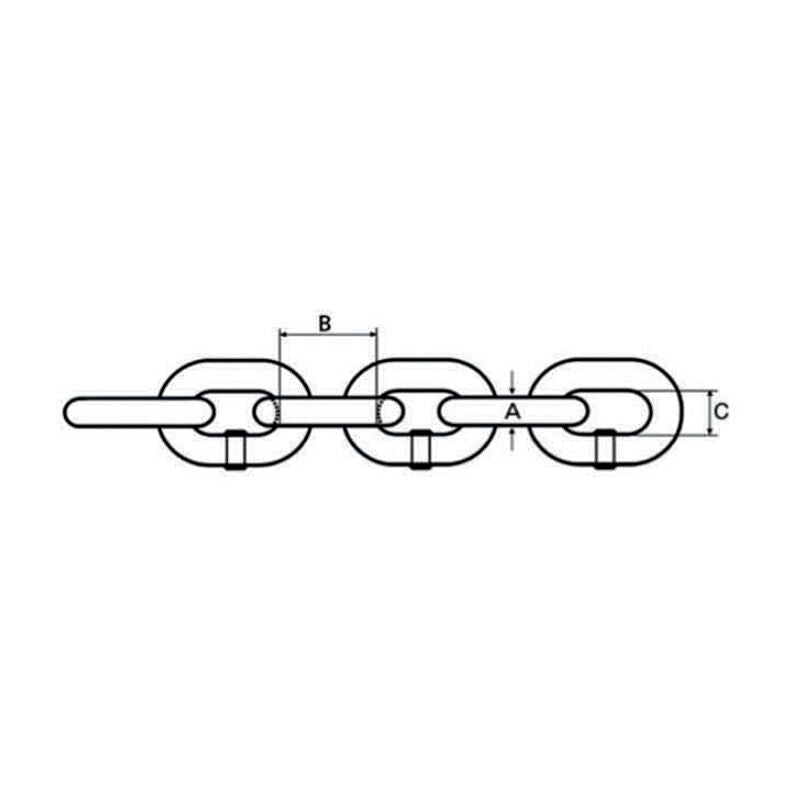

| PART NO. | A | B | C | SWL, KN (TONS) | UTS, KN (TONS) | WEIGHT (KG PER M) | STANDARD |
| WL-0814-0706 | 6 | 18.5 | 8 | 4 (0.4) | 16 (1.6) | 0.81 | DIN 766 AND ISO4565 |
| WL-0814-0708 | 8 | 24 | 12 | 7.5 (0.75) | 30 (3.0) | 1.42 | DIN 766 AND ISO4565 |
| WL-0814-0710 | 10 | 28 | 14 | 12.5 (1.25) | 50 (5.0) | 2.21 | DIN 766 |
| WL-0814-0712 | 12 | 36 | 18 | 17.5 (1.75) | 70 (7.0) | 3.25 | DIN 766 AND ISO4565 |
