Clamcleat CL253 Trapeze & Vang with Link

CL253 Trapeze & Vang Cleat

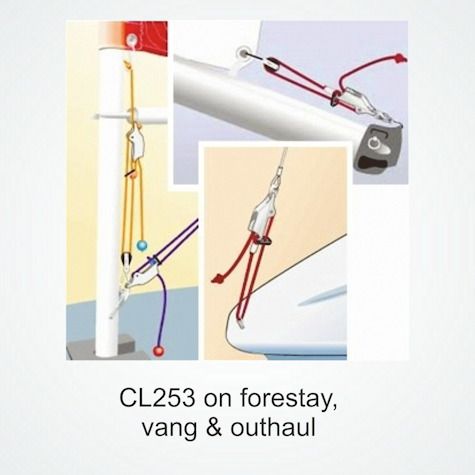

Ideal for dinghy trapeze adjustment, vangs & windsurf harnesses. The Sailor's preferred choice for adjusting dinghy trapeze lines. Also used for vangs & kicking straps; outhauls and small dinghy forestays. The Clamcleat® CL253 offers a light weight and compact solution for rope adjustment, with a quick, positive lock, that is easy to release.

Each Clamcleat® CL253 is supplied with a black "link" (PTLINK). This makes releasing the rope a lot easier. For windsurfing, the CL253 can be used as part of a adjustable downhaul system.

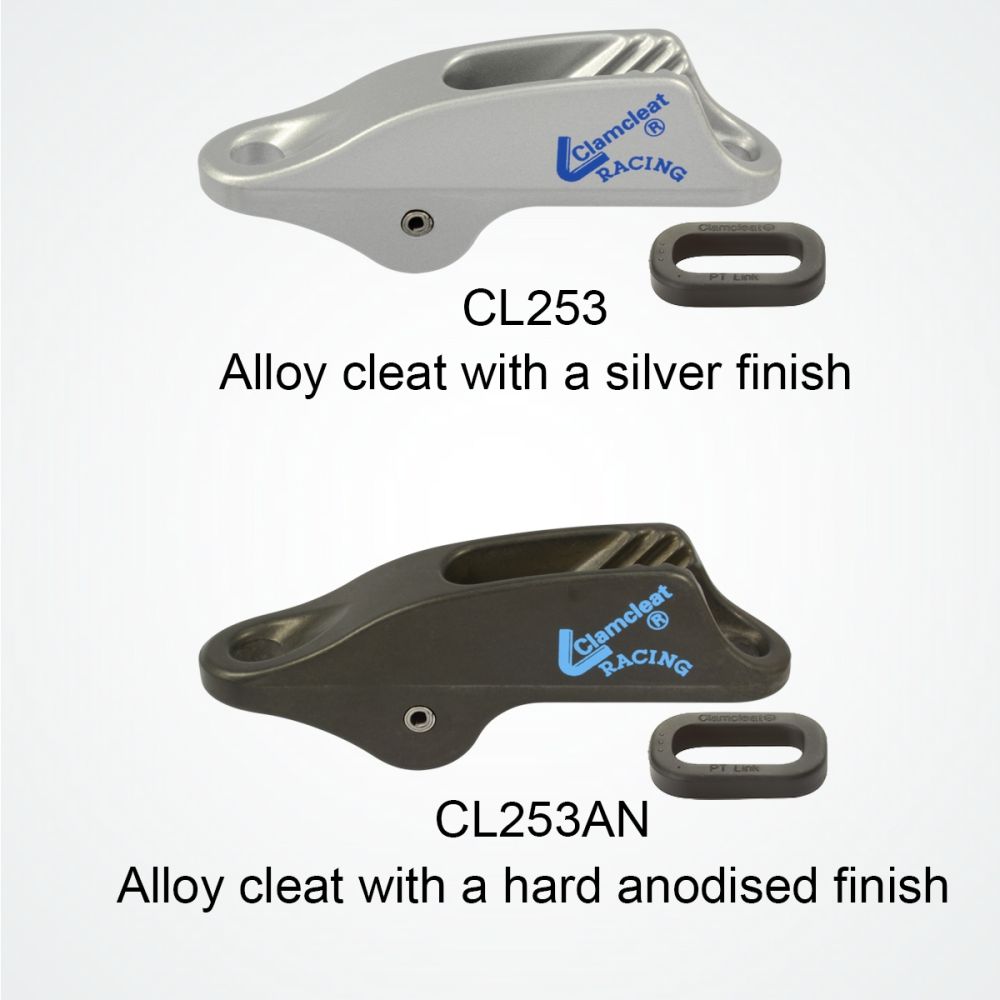

The cleat has an in-built pulley. Manufactured from aluminium for light weight and durable performance, two finishes are available:
1. CL253 has a silver stove enamel finish for a cost effective, high quality coating
2. CL253AN has a hard anodised finish to give a hard wearing surface.

Helpful hints:
- Use 16 plait rope for best results.

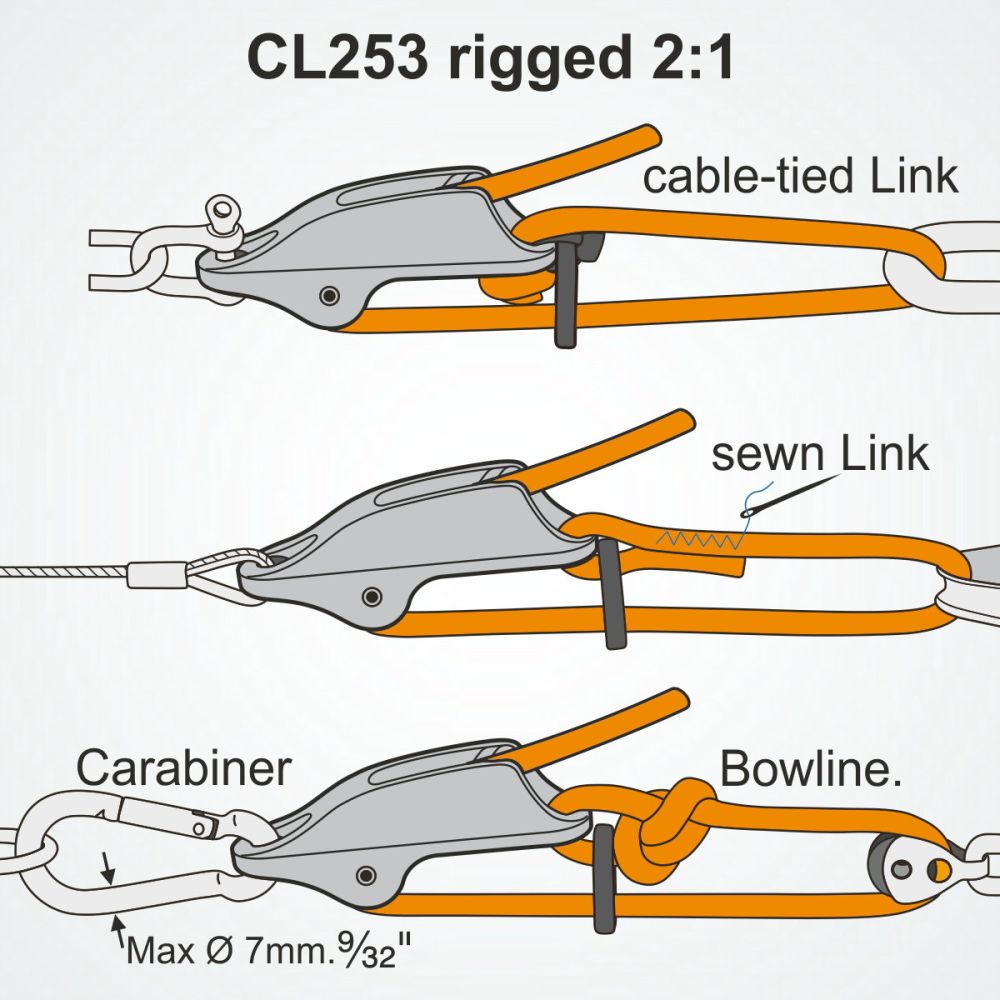

- Always use the supplied PTLINK for easier rope release. See rigging sketches on right.
- Waxing the rope can protect rigs from sand damage and revitalise a worn rig.
- Use heat shrink covers or electrical tape to prevent potential snagging points.

The CL253 can be also used for- Canvas structures and Theatre lighting

Our CL834 makes a great handle for the CL253 for dinghy Trapeze adjustment.

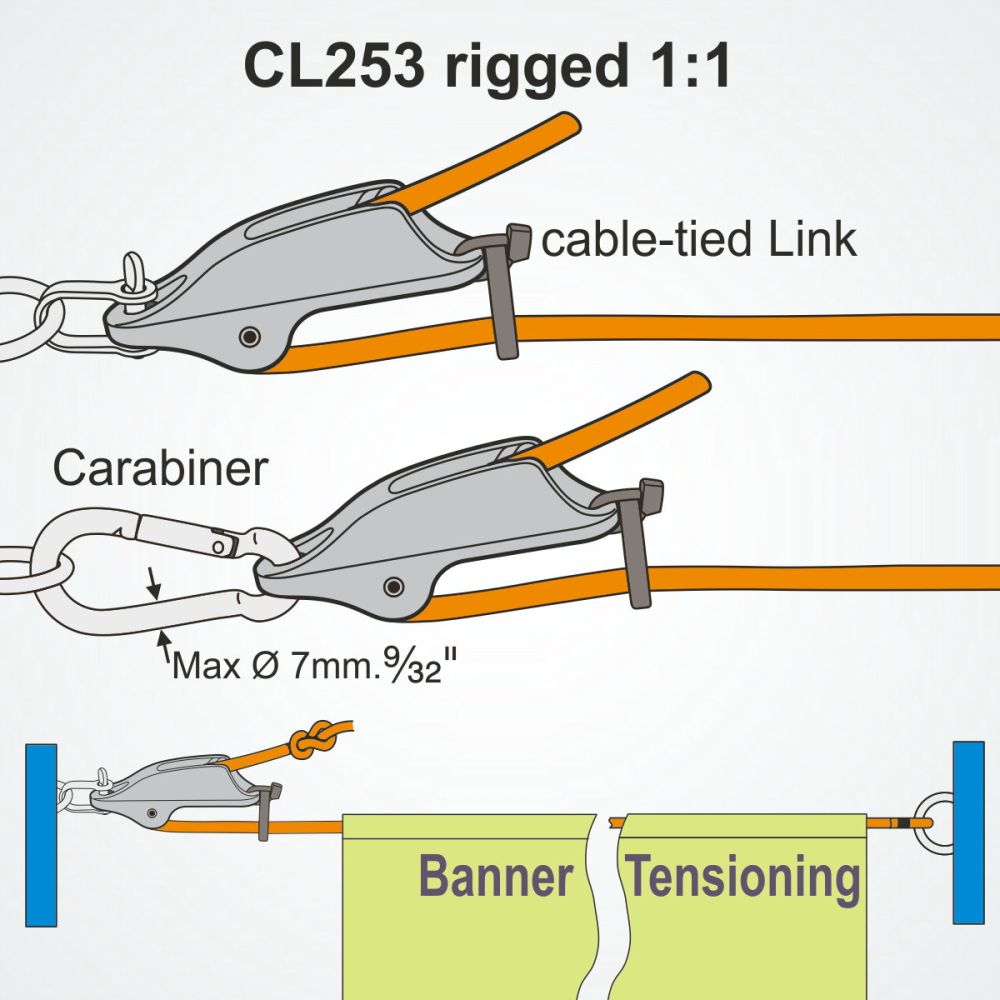

When the CL253 is rigged 1:1, the PT230SSE is ideal to use as a rope guide.
Some people like to use the CL264 for their trapeze because it is easy to hold the whole cleat in your hand.
A slightly smaller cleat that is also used for Trapeze is the CL230.

Technical Details   Metric Imperial Rope Diameter 4 - 8mm 3/16 - 5/16" Material Aluminium & Nylon Aluminium & Nylon Hole Centres 72mm 2 13/16" Length 90mm 3 9/16" Width 18mm 11/16" Height 35mm 1 3/8 Bolt Size n/a n/a Screw Size n/a N/A Weight 46gms 1.6oz
